IPark has secured a contract from the RTA to build 405 automated car parking spaces (Robotic Tower Parking)

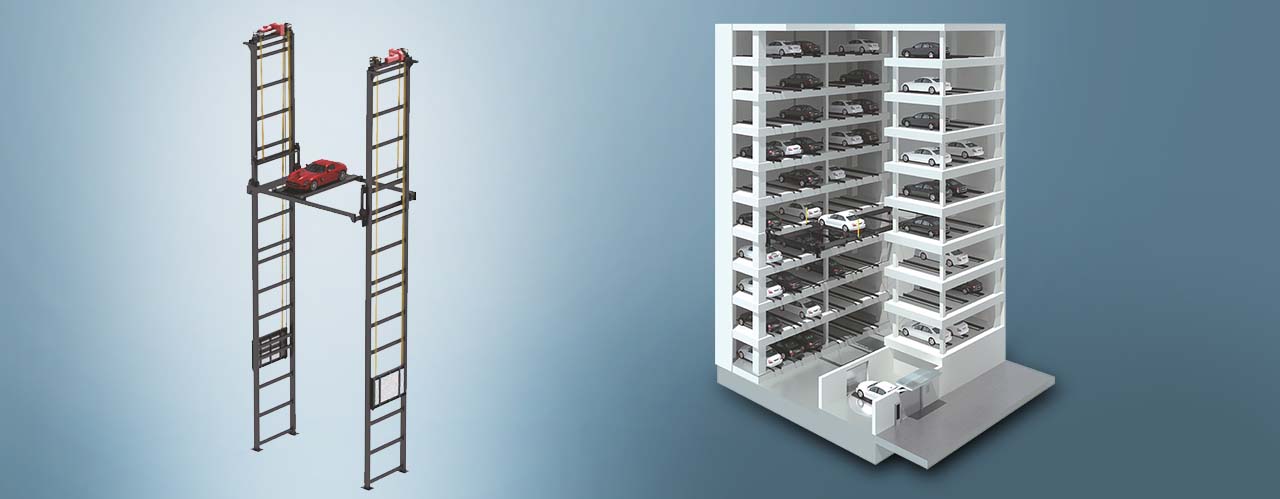

IPark Robotic Tower Parking System

Features

  •  Robot used for picking of Cars
  •  Car lift is equipped with both horizontal and vertical movements
  •  Parking and retrieval of cars at ground level
  •  Smooth traffic flow can be designed according to site conditions.
  •  Steel Structure/ RCC structure can be used

Car Dimensions

  •  Car Length (Max) - 5200 mm
  •  Car Width (Max) - 2200 mm
  •  Car Height (Max) - 2000 mm
  •  Car Weight (Max) - 2300 Kg

Technical Parameters

  •  Lifting Motor - 11.0 / 30.0 kW
  •  Lifting Speed - 50 - 80 m/minute
  •  Transfer Speed- 30-50 m/minute
  •  Lifting Method- Steel Rope/ Chain
  •  Turn Table Speed- 2 RPM
  •  Operation - Touch Screen/ RFID card
  •  Power Supply - Ac 400 V/50 Hz
  •  Three Phase, 5 wire
  •  Entry/ Exit - Auto Doors
