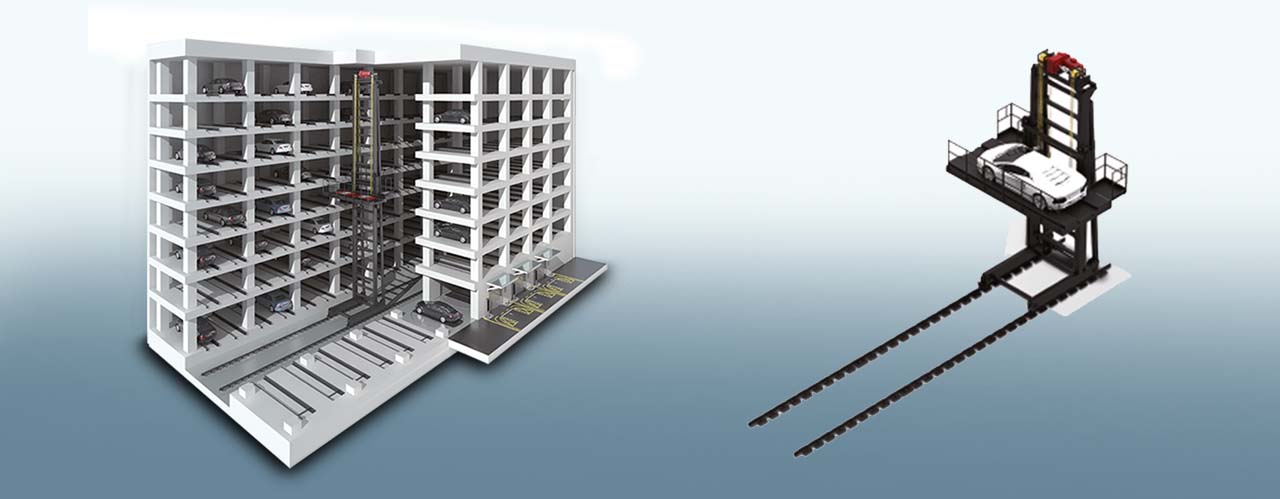

IPark Transporter Device
Parking System

Features

  •  Fully Automated Parking System
  •  Each car is checked for the sizes at Parking Room
  •  Parking Guidance in each Parking room
  •  Turn table for easy drive out
  •  Robot used for transfer of cars
  •  Less cycle time compared to Transporter Device Pallets
  •  Transporter Device move in both horizontal and vertical directions
  •  Parking of all cars shall be at Ground level.
  •  This system can be used for both above ground level as well as under ground

Technical Parameters

  •  Lifting Motor - 11.0 / 30.0 Kw
  •  Sliding motor- 0.75 - 2.2
  •  Lifting Speed - 50 - 70 m/minute
  •  Carrier Speed- 40-60 m/minute
  •  Lifting Method- Steel Rope/ Chain
  •  Turn Table Speed- 2 RPM
  •  Operation - Touch Screen/ RFID card
  •  Power Supply - Ac 400 V/50 Hz
  •  Three Phase, 5 wire
  •  Entry/ Exit - Auto Doors

Car Dimensions

  •  Car Length (Max) - 5200 mm
  •  Car Width (Max) - 2200 mm
  •  Car Height (Max) - 2000 mm
  •  Car Weight (Max) - 2300 Kg
