IPark has secured a contract from the RTA to build 405 automated car parking spaces (Robotic Tower Parking)

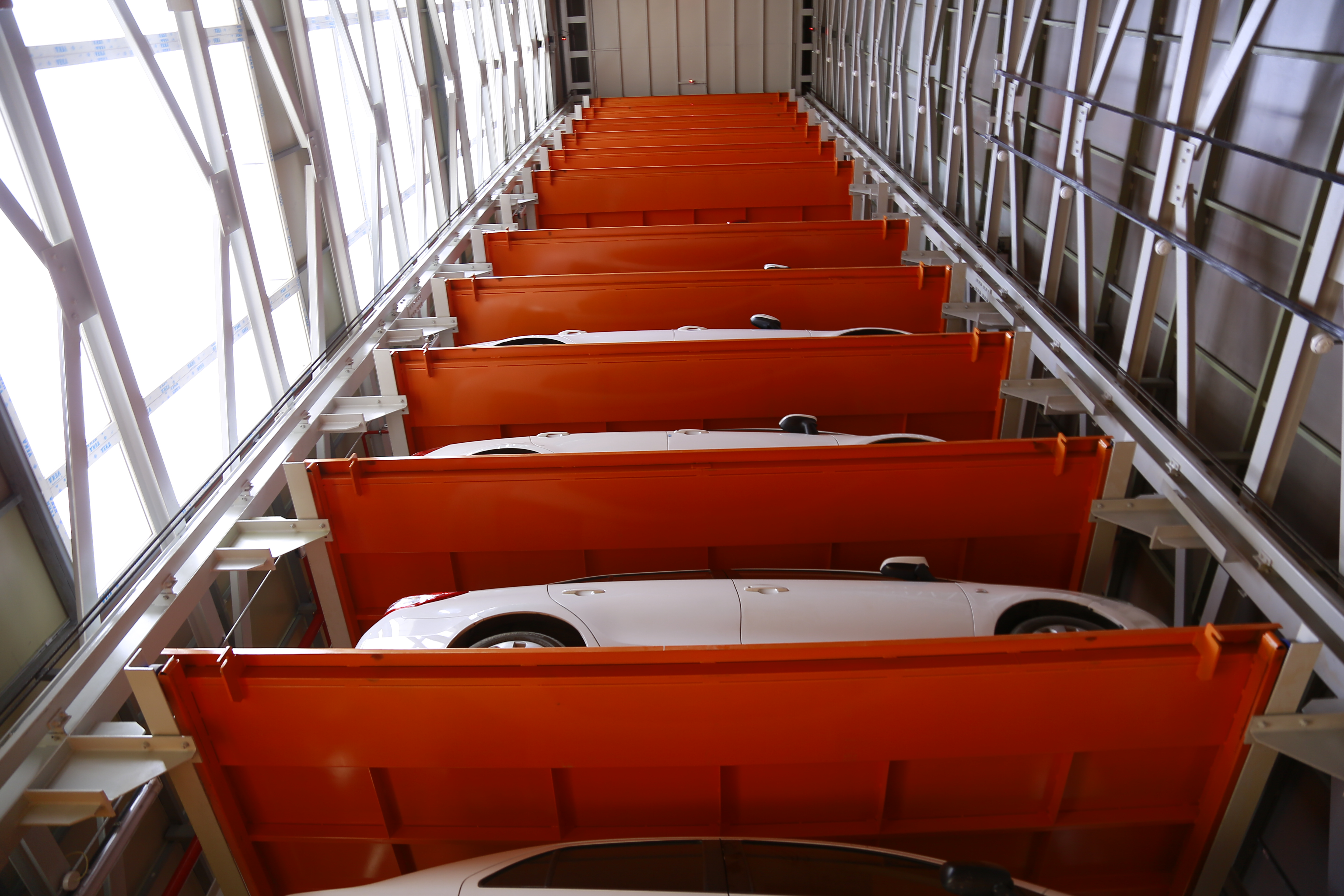

IPark Tower Parking System with Pallets

Features

  •  Fully Automated Parking System
  •  Car is directly parked on Car Lift
  •  Maximum utilization of vertical space for parking
  •  No ramps required, car is vertically lifted up and parked on sides
  •  Turn table can be provided for easy drive out

Technical Parameters

  •  Lifting Motor - 22.0 / 30.0 kW
  •  Lifting Speed - 50 - 60 m/min
  •  Turn Table Speed - 2 RPM
  •  Operation - Touch Screen + RFID card
  •  Power Supply - Ac 400 V / 50 Hz
  •  (Three Phase, 5 wire)
  •  Entry/ Exit - Auto Doors

Car Dimensions

  •  Car Length (Max) - 5200 mm
  •  Car Width (Max) - 2200 mm
  •  Car Height (Max) - 2000 mm
  •  Car Weight (Max) - 2300 Kg
