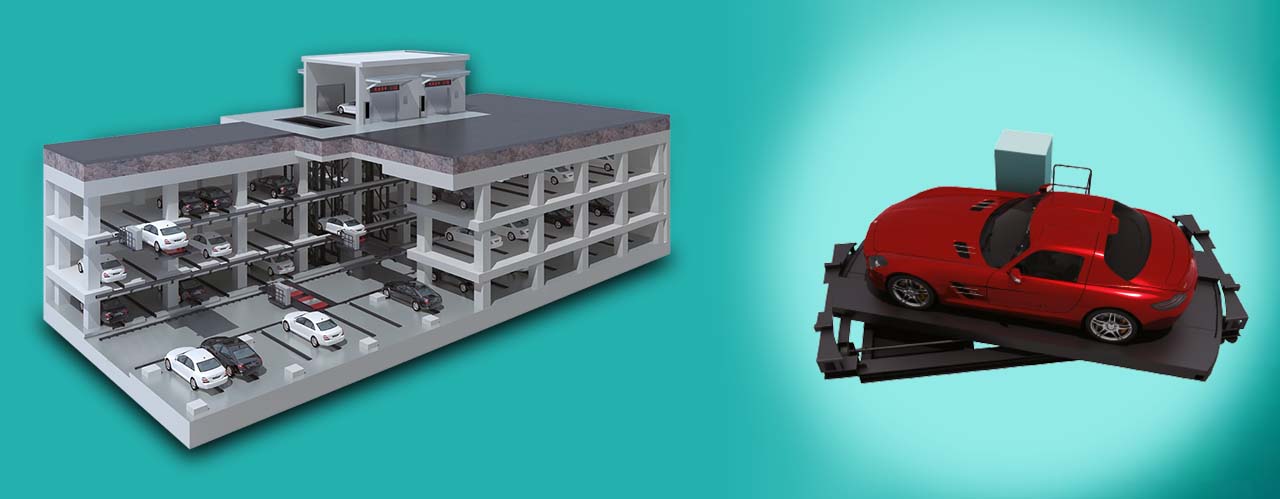

IPark Shuttle Parking System
with Robot

Features

  •  Fully Automated Parking system
  •  Each car is checked for the sizes at Parking Room
  •  Parking guidance in each Parking room
  •  Turn Table for easy drive out
  •  Multiple Elevators can be provided to minimize cycle time

Technical Parameters

  •  Lifting Motor - 11.0 / 30.0 kW
  •  Sliding Motor - 0.75 - 2.2 KW
  •  Lifting Speed - 40 - 60 m/min
  •  Entry/ Exit - Auto Doors
  •  Shuttle Travel Speed - 40 - 60 m/min
  •  Robot transfer Speed - 40 - 60 m/minute
  •  Turn Table Speed - 2 RPM
  •  Operation - Touch Screen + RFID card
  •  Power Supply - Ac 400 V / 50 Hz
  •  (Three Phase, 5 wire)

Car Dimensions

  •  Car Length (Max) - 5200 mm
  •  Car Width (Max) - 2200 mm
  •  Car Height (Max) - 2000 mm
  •  Car Weight (Max) - 2300 Kg
